VOLVO VNL 18-UP C Q
An Ali Arc truck bar is the best collision protection available for your vehicle. We have gone to great lengths to design and build a bar that looks good without compromising strength and purpose. You can be sure that your investment is protected.
Select your language below, to download our brochure.
Features
Available for virtually all trucks, each unit comes with the following.
- PATENT PENDING STEEL MOUNTING BRACKET AND TILT SYSTEM
- VERY STRONG SINGLE PIN STEEL TOW HITCH
- HALF INCH HIGH TENSILE ALUMINUM BUMPER
- HIGHLY POLISHED, MARINE GRADE ALUMINUM TUBE WORK
- INSTALLATION INSTRUCTIONS AND WARRANTY
- 1/2″ wall thickness extruded high tensile aluminum bumper
- 1/4″ wall thickness marine grade tube
- 2 1/2″ diameter tube
- 1/4″ ‘I beam’ uprights, welded both sides
- Integrated centre tow hitch and easy access tilt system
- Removable tow pin
- High pressure cast logo eyebolts
- Lightweight 260lbs – 340lbs
- Tested and proven original designs
- 2 or 4 post options available on certain models
- 12″ or 16″ bumper on certain models
Gallery
VT 880 – available with light cut-outs
EVOLUTION FOR VNL

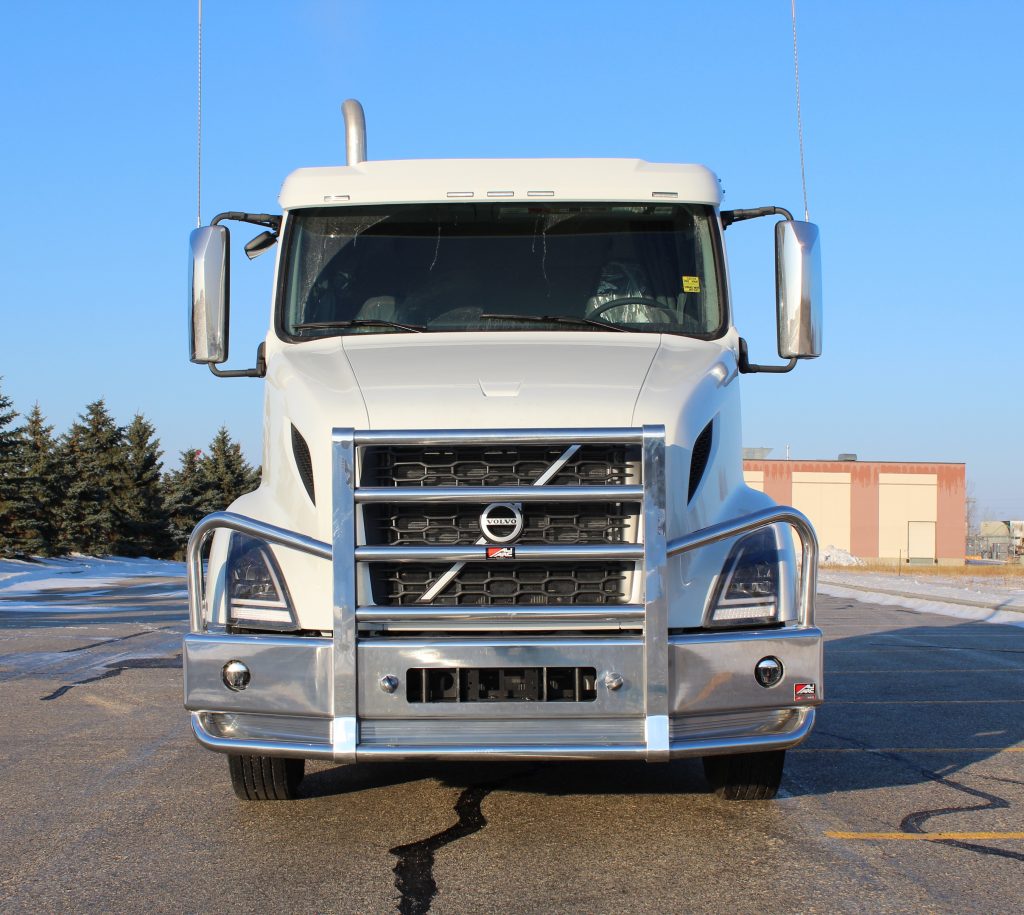

VOLVO VNL 2018-UP
Volvo VNL 4 Post 2003-Up – Model V0184B4
VT 880 SBA 06-UP – WITH LIGHT CUT OUTS
VHD
VNL Second Generation – LIGHT CUT OUTS STANDARD
VNL first generation
WIA
Volvo Quick Release – VO974BCQ
Part Numbers
| SKU | Description | Shape | Weight (lbs.) |
|---|---|---|---|
| V0176B | VOLVO VHD SBA, 2002 – UP | Angled | 320 |
| V0176F | VOLVO VHD SFA, 2002 – UP | Angled | 320 |
| V0173B | VOLVO VNL, – 2002 | Curved | 364 |
| V0174B | VOLVO VNL, 2003 – UP | Curved | 364 |
| V0174E | VOLVO VNL, 2003 – UP EVOLUTION | Curved | 364 |
| V0174EC | VOLVO VNL 2003-UP EVOLUTION WITH CAS | Curved | 364 |
| V0184B4 | VOLVO VNL, 2003 – UP 4 POST | Curved | 364 |
| V0172B | VOLVO VNM, 1997 – 2003 | Curved | 364 |
| V0175B | VOLVO VNM, 2003 – UP | Curved | 360 |
| V0177B | VOLVO VT880, 2006 – UP | Curved | 368 |
| V0171B | VOLVO WIA SBA | Angled | 320 |
| V0974BC | VOLVO VNL 2018-UP COLLISION AVOIDANCE | Angled | 335 |
| V0975BC | VOLVO VNR SERIES SBA 2018-UP COLLISION AVOIDANCE | Angled | 335 |
| VOB001 | VOLVO VNL 2003-UP GRILL GUARD | 125 | |
| VOB002 | VOLVO VNL 2018-UP GRILLE GUARD | 125 | |
| VO974BCQ | VOLVO VNL 18-UP C Q |
