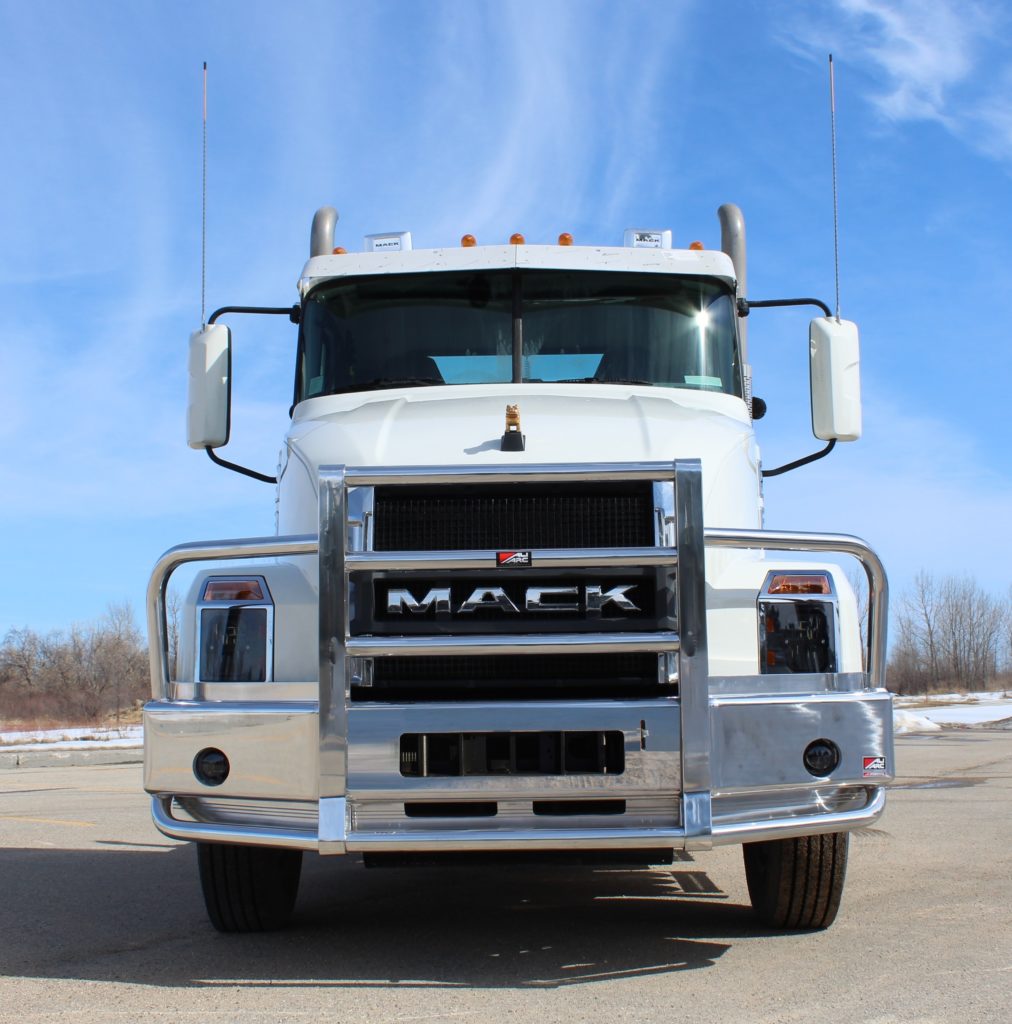

An Ali Arc truck bar is the best collision protection available for your vehicle. We have gone to great lengths to design and build a bar that looks good without compromising strength and purpose. You can be sure that your investment is protected.

Select your language below, to download our brochure.

• Size: 872kB | PDFEnglish
• Size: 939kB | PDFFrançais

Features

Available for virtually all trucks, each unit comes with the following.

• PATENT PENDING STEEL MOUNTING BRACKET AND TILT SYSTEM
• VERY STRONG SINGLE PIN STEEL TOW HITCH
• HALF INCH HIGH TENSILE ALUMINUM BUMPER
• HIGHLY POLISHED, MARINE GRADE ALUMINUM TUBE WORK
• INSTALLATION INSTRUCTIONS AND WARRANTY
• 1/2″ wall thickness extruded high tensile aluminum bumper
• 1/4″ wall thickness marine grade tube
• 2 1/2″ diameter tube
• 1/4″ ‘I beam’ uprights, welded both sides
• Integrated centre tow hitch and easy access tilt system
• Removable tow pin
• High pressure cast logo eyebolts
• Lightweight 260lbs – 340lbs
• Tested and proven original designs
• 2 or 4 post options available on certain models
• 12″ or 16″ bumper on certain models

Gallery

Part Numbers
