Discover our premium selection of Western Star bumpers, engineered for exceptional durability, functionality, and style. Whether you’re driving a 4900, 5700XE, or another Western Star model, our bumpers are designed to provide maximum protection while maintaining a professional, rugged appearance. Browse our current inventory of Western Star bumpers below or download our brochure for more information.
Features
Available for virtually all truck models; each unit comes with the following:
- PATENT PENDING STEEL MOUNTING BRACKET AND TILT SYSTEM
- VERY STRONG SINGLE PIN STEEL TOW HITCH
- HALF INCH HIGH TENSILE ALUMINUM BUMPER
- HIGHLY POLISHED, MARINE GRADE ALUMINUM TUBE WORK
- INSTALLATION INSTRUCTIONS AND WARRANTY
- 1/2″ wall thickness extruded high tensile aluminum bumper
- 1/4″ wall thickness marine grade tube
- 2 1/2″ diameter tube
- 1/4″ ‘I beam’ uprights, welded both sides
- Integrated centre tow hitch and easy access tilt system
- Removable tow pin
- High pressure cast logo eyebolts
- Lightweight 260lbs – 340lbs
- Tested and proven original designs
- 2 or 4 post options available on certain models
- 12″ or 16″ bumper on certain models

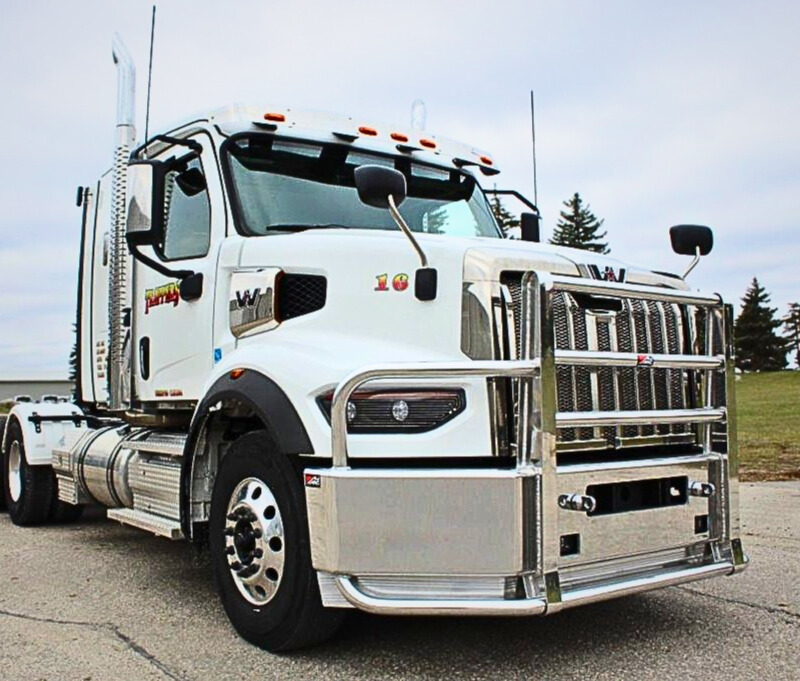

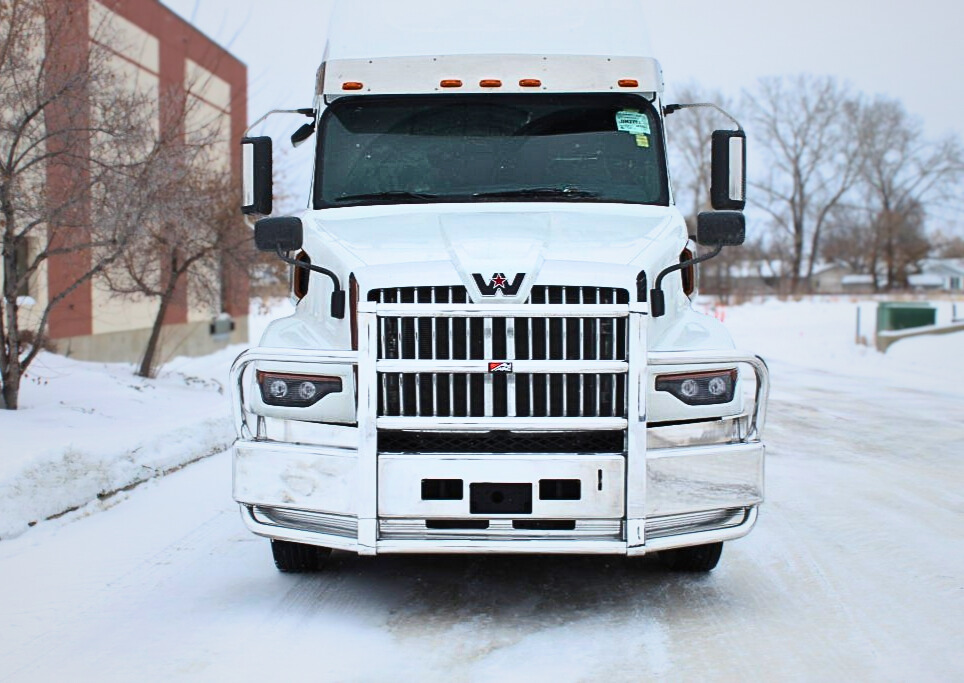

Gallery
Western Star Bumpers – Part Numbers
Current Ali Arc inventory of Western Star bumpers
| SKU | Description | Shape | Weight (lbs.) |
|---|---|---|---|
| W197BTCQ | W/STAR 49X SBA 21-UP WITH TCQ 2 HOOKS | Angled | 370 |
| WS162T | WESTERN STAR 4900 FA LOG 2008-UP 410 | Straight | 302 |
| WS163F | WESTERN STAR 4900 EX/FX/FA HWY 1997-2007 | Straight | 270 |
| WS163T | W/STAR 4900 EX/FX/FA HWY 410 1997-2007 | Straight | 305 |
| WS164F | W/STAR 4900 FA HIWAY 08-UP | Straight | 255 |
| WS164F4 | W/STAR 4900 FA HWY 4 POST 2008 – UP | Straight | 320 |
| WS164T | WESTERN STAR 4900 FA HIWAY 410 08-UP | Straight | 290 |
| WS164T4 | W/STAR 4900 FA HIWAY 410 4 POST 08-UP | Straight | 340 |
| WS189B | W/STAR 4900 SA HWY 2008 – UP | Angled | 280 |
| WS189R | W/STAR 4900 SA HWY 08-UP RAISED CAB | Straight | 267 |
| WS190B | WESTERN STAR 4900 SA (SV) LOG | Angled | 217 |
| WS190B4 | W/STAR 4900 SA (SV) LOG 4 POST | Angled | 220 |
| WS190R | WESTERN STAR 4900 SA (SV) RAISED CAB 41 | Straight | 245 |
| WS191R | W/STAR 4900 SA LOG RAISED CAB 08-UP | Straight | 267 |
| WS193T | WESTERN STAR 4700 SFA 2013-UP | Straight | 290 |
| WS196B | WESTERN STAR 5700 XE 2015-UP | Angled | 319 |
| WS196B4 | WESTERN STAR 5700 XE 2015-UP 4-POST | Angled | 330 |
| WS196BC | WESTERN STAR 5700 15-UP W/CAS | Angled | 320 |
| WS196BCQ | W/STAR 5700 15-UP CAS Q | Angled | 320 |
| WS196BCW | WESTERN STAR 5700XE 15-UP W/CAS WIDE RAD | Angled | 320 |
| WS196BCWQ | Western Star 5700xe 15-up w/cq wide rad | Angled | 320 |
| WS196BW | WESTERN STAR 5700 SBA WIDE RAD 15 – UP | Angled | 320 |
| WS196BW4 | WESTERN STAR 5700SBA WIDE RAD 4POST 2015 – UP | Angled | 320 |
| WS196T | WESTERN STAR 5700 XE 2015-UP 410 BUMPER | Straight | 348 |
| WS196T4 | W/STAR 5700 XE 2015-UP 410 BUMPER 4-POST | Straight | 358 |
| WS196TW | WESTERN STAR 5700 SBA 410 WIDE RAD 15 – UP | Angled | 358 |
| WS196TW4 | WESTERN STAR 5700 SBA 410 4 POST WIDE RAD 15 – UP | Angled | 358 |
| WS197BC | WESTERN STAR 49X SBA 2023-UP W/CAS | Angled | 320 |
| WS197BCQ | WESTERN STAR 49X SBA 2023-UP W/CAS QR | Angled | 320 |
| WS197BTC | WS 49X SBA 410 W/CA AND FOG LIGHT 2023-UP | Angled | 370 |
| WS197FC | W/STAR 49/47X SFA (TWO HOOKS) W/CAS 21-UP | Straight | 330 |
| WS197FCQ | WESTERN STAR 49/47X SFA W/CAS Q-LATCH | Straight | 350 |
| WS197XC | WESTERN STAR 49/47X 21-UP 4PST 3″ CAS | Straight | 335 |
| WS197XCQ | WESTERN STAR 49/47X 21-UP 410 4PST 3″ CQ | Straight | 335 |
| WS198BC | WESTERN STAR 57X 2023-UP W/CAS | Angled | 320 |
| WS198BCQ | WESTERN STAR 57X 2023-UP W/CAS Q-LATCH | Angled | 320 |
| WSB001 | W/STAR 5700 REG RAD 2015-UP GRILLE GUARD | Angled | 140 |
Contact our sales team to find the bumper part for your Western Star truck.
